Product
UPN-APLP4F-A10-0864

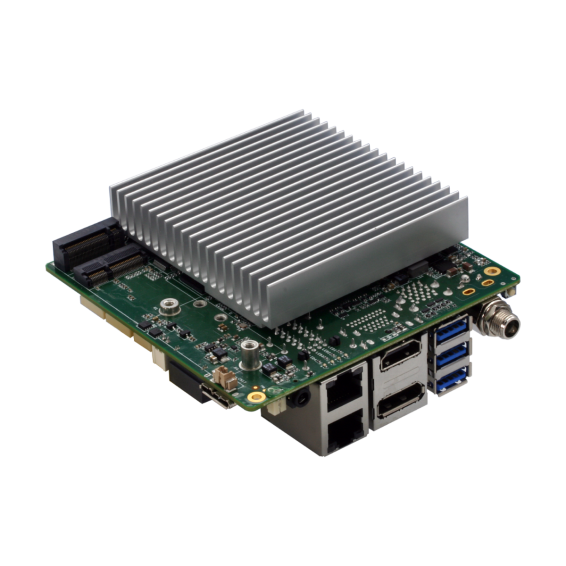

UP Squared Pro Pentium Quad Core 08/64
Processor Intel® Pentium® N4200
Graphics Intel® HD Graphics 505
VPU Optional (via M.2 2280)
Memory 8GB
eMMC / Storage 64 GB
FPGA Intel® FPGA Altera MAX 10
BIOS UEFI
Compatible OS Microsoft Windows 10 full version, Linux (Ubuntu, Yocto)
Specification
- CPU
- Intel® Pentium® N4200
- Graphics
- Intel® HD Graphics 505
- Memory
- 8GB
- Expansion Slot
- 1x M.2 2280 M Key (Support NVME SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key Correlation 1x Nano SIM
- 기타 인터페이스
- USB3.0 type A x 3 USB 3.0 OTG Micro B x1/2 x UART (Tx/Rx) debug ports (pinheaders)/2x RS232/422/485/2 x GbLAN (Intel i210 AT)
- 사이즈
- 4" x 4" (10.16cm x 10.16cm)
- 동작온도
- 0℃～60℃
Product Details
| Name | UP Squared Pro Pentium Quad Core 08/64 |
|---|---|
| SKU | UPN-APLP4F-A10-0864 |
General
| Processor | Intel® Pentium® N4200 |
|---|---|
| Graphics | Intel® HD Graphics 505 |
| VPU | Optional (via M.2 2280) |
| Memory | 8GB |
| eMMC / Storage | 64 GB |
| FPGA | Intel® FPGA Altera MAX 10 |
| BIOS | UEFI |
| RTC | Yes |
| Wake-on-LAN (WoL) | Yes |
| Watchdog Timer | Yes |
| PXE | Yes |
| TPM | Powered by Infineon TPM SLB9670 |
| Compatible OS | Microsoft Windows 10 full version, Linux (Ubuntu, Yocto) |
| Dimension | 4" x 4" (10.16cm x 10.16cm) |
Display
| HDMI | 1 (HDMI 1.4b) |
|---|---|
| Display Port | 1 (DP 1.2）4K @ 60 hz |
| MIPI DSI/ eDP | 1×eDP |
I/O
| USB | USB3.0 type A x 3 USB 3.0 OTG Micro B x1 |
|---|---|
| UART | 2 x UART (Tx/Rx) debug ports (pinheaders) |
| Serial Port | 2x RS232/422/485 |
| Expansion Slot | 1x M.2 2280 M Key (Support NVME SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key Correlation 1x Nano SIM |
| 40-pin GPIO header | 1 |
Connectivity
| Ethernet | 2 x GbLAN (Intel i210 AT) |
|---|---|
| Wi-Fi | Optional (via M.2 2230) |
| Bluetooth | Optional (via M.2 2230) |
| LTE / 4G / 5G | Optional (via M.2 3042/3052) |
Power
| Power Requirement | 12-24V DC-IN (lockable connector) |
|---|---|
| Power Supply Type | AT (default) /ATX |
| Power Consumption (Typical) | 20 watts |
Environmental & Certification
| Cooling | Passive cooling (fanless) |
|---|---|
| Operating Temperature | 0℃～60℃ |
| Storage temperature | -40°F ～ 176°F (-40°C ～ 80°C) |
| MTBF (Hours) | 473,779 hours |
| Certification | CE/FCC Class A,Rohs |
Package
| Net Weight | 219g |
|---|---|
| Gross Weight | 400g |
| HS Code | 8473302000 |
| Country of Origin | Taiwan |
Longevity
| Longevity | 2031 |
|---|
Accessories
| Accessories | 1x RTC Battery 1x passive heatsink |
|---|
