UPN-EHLX4RE-A10-0864
자세히보기
UPN-EHLX4RE-A10-0864
자세히보기

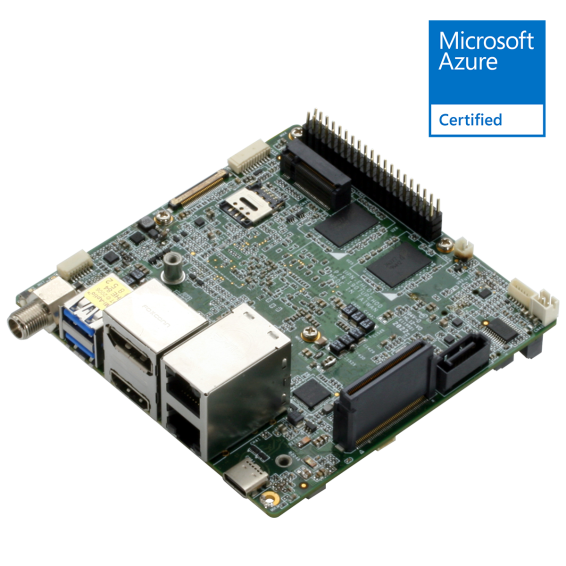

UPN-EHLX4RE-A10-0864

UP Squared 6000 AT 08/64Processor Intel Atom® x6425RE
Graphics Intel® Graphics GEN 10 32EU 400Mhz (750Mhz with Turbo enabled)
VPU Optional (via M.2 2280)
Memory 8GB
eMMC / Storage 64 GB
BIOS UEFI Compatible OS Windows 10/10 IoT Core、Linux: Ubuntu 20.04、Yocto 3.1

UPN-EHLX4RE-A10-0864
UPN-EHLX4RE-A10-0864

Specification

CPU
Intel Atom® x6425RE
Graphic
Intel® Graphics GEN 10 32EU 400Mhz (750Mhz with Turbo enabled)
Memory
8GB
Expansion Slot
1x M.2 2242/2280 M Key (supports NMVe SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key, 1x micro-SIM slot
기타 인터페이스
2x USB 3.2 Gen2 Type A (STACK connector), 1xUSB 3.2 Gen2 Type C (OTG support)/Audio jack line in/out/1 x UART via carrier board/1x RS232/422/1x 1 GbE RJ-45 (Intel I211-AT), 1x 1/2.5 GbE RJ-45 (Intel I
사이즈
157×147×68mm
동작온도
0℃～60℃

Product Details

NameUP Squared 6000 AT 08/64
SKUUPN-EHLX4RE-A10-0864

General

ProcessorIntel Atom® x6425RE
GraphicsIntel® Graphics GEN 10 32EU 400Mhz (750Mhz with Turbo enabled)
VPUOptional (via M.2 2280)
Memory8GB
eMMC / Storage64 GB
BIOSUEFI
RTCYes
Wake-on-LAN (WoL)Yes
Watchdog TimerYes
PXEYes
TPMEquipped with TPM2.0
Compatible OSWindows 10/10 IoT Core、Linux: Ubuntu 20.04、Yocto 3.1
Dimension4" x 4" (10.16cm x 10.16cm)

Display

HDMI1 x HDMI 2.0b
Display Port1 x DP 1.2
MIPI DSI/ eDP1x eDP (4K@60hz)

I/O

USB2x USB 3.2 Gen2 Type A (STACK connector), 1xUSB 3.2 Gen2 Type C (OTG support)
AudioAudio jack line in/out
UART1 x UART via carrier board
Serial Port1x RS232/422
Expansion Slot1x M.2 2280 M Key (Supports NMVe SSD), 1x M.2 2230 E Key, 1x M.2 3052 B Key, 1x Micro SIM Slot
40-pin GPIO header1
MIPI-CSIN/A
Others1x 100 pin GP bus

Connectivity

Ethernet1x 1 GbE RJ-45 (Intel I211-AT) 1x 1/2.5 GbE RJ-45 (Intel I225-V, supports TSN)
Wi-FiOptional (via M.2 2230)
BluetoothOptional (via M.2 2230)
LTE / 4G / 5GOptional (via M.2 3042/3052)

Power

Power Requirement12V (with +/- 5% tolerance)
Power Supply TypeAT (default) /ATX
Power Consumption (Typical)22 watts

Environmental & Certification

CoolingPassive cooling (fanless)
Operating Temperature0℃～60℃
Storage temperature-40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours)402,617 hours
CertificationCE/FCC Class A

Package

Net Weight200 grams
Gross Weight350 grams
Package dimension (L x W x H)157*147*68mm
HS Code8473302000
Country of OriginTaiwan

Longevity

Longevity2035

Accessories

Accessories1x RTC battery, 1x passive heatsink
